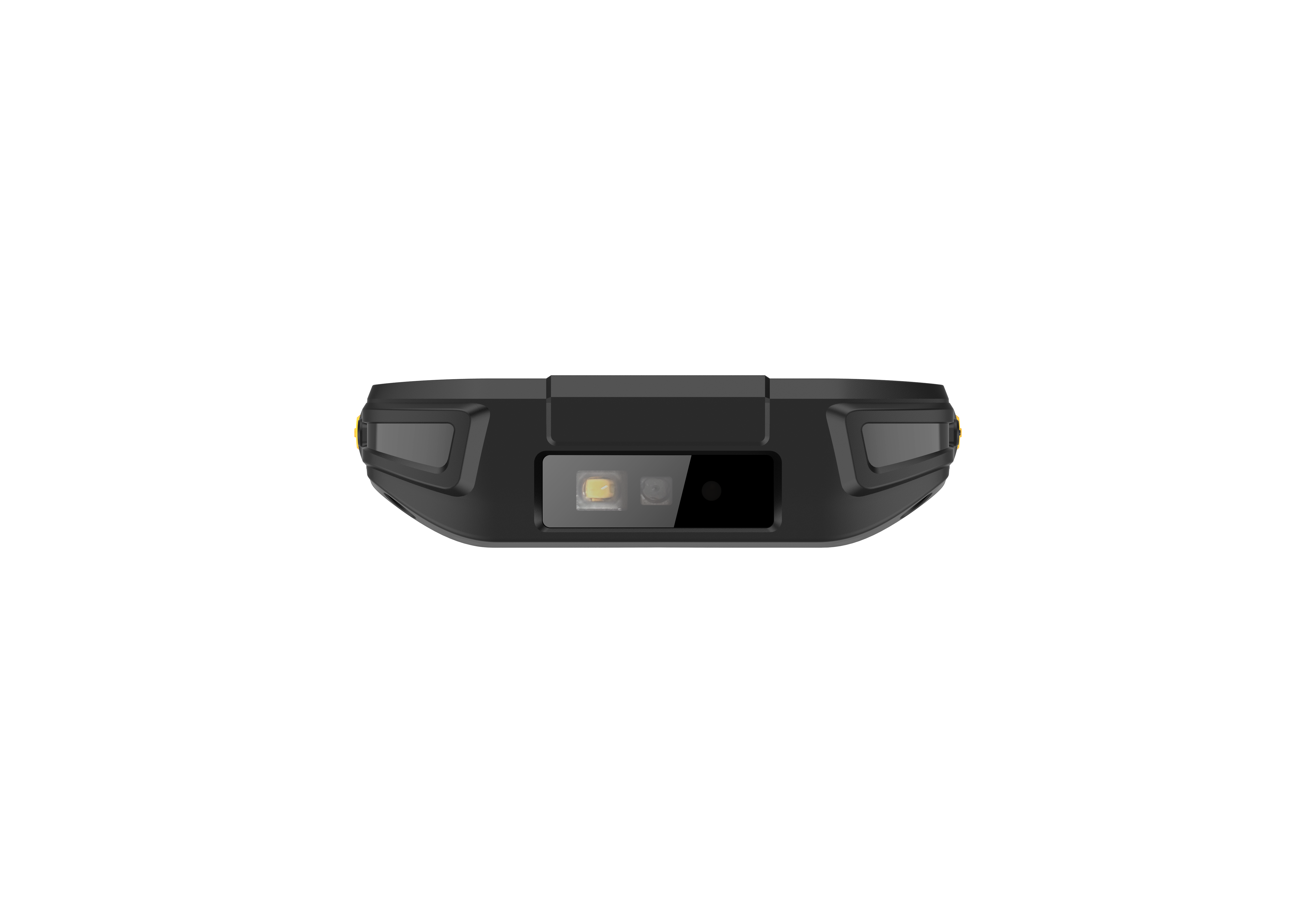

Angled scan engine for exceptional user comfort
Equipped with an angled scan engine, the MT93 Standard is an ideal solution for industries like retail, warehousing & logistics, and manufacturing. It improves ergonomics by allowing users to scan barcodes without constantly having to tilt the device or their wrist, providing better user comfort and minimizing physical fatigue. The angled scan engine also helps to better access barcodes on items that might be stored on high shelves, allowing users to scan without needing to physically reach the items or maneuver the device into difficult positions.
Предлагаемые области
Retail
Warehousing
Logistics
Hospitality
Events
Характеристики
Powerful Performance
Intuitive and Comfortable Design
Powered by 2.2GHz octa-core processor and a robust 4GB of RAM, the MT93 Standard can effortlessly handle multiple tasks. Running on Android 13 and featuring GMS, this device not only strengthens security measures but also guarantees a smoother and more efficient operational experience.
High-Precision Barcode Scanning
Uninterrupted Productivity
The MT93 Standard blends advanced functionality with a user-centric design. The MT93 boasts a combination of lightweight design and rugged durability. It comes equipped with a user-friendly 5.5-inch capacitive touchscreen, just like your regular smartphone. Featuring an angled scan engine, the MT93 Standard adds comfort to your workflow, effectively minimizing fatigue and discomfort associated with pro-longed scanning activities.
Built to Last
технические данные
| 1D | All major 1D symbologies |
| 2D | All major 2D symbologies |
| Image Sensor | 1280 x 800 CMOS |
| Aiming | Laser Diode |
| Illumination | White LED (625±10nm) |
| Scan Modes | Trigger Mode |
| Scan Rate | 60 frames per second |
| Depth of Field EAN 13 (13mil) | 70mm-610mm |
| Depth of Field Code 39 (5mil) | 110mm-290mm |
| Depth of Field PDF417 (6.7mil) | 110mm-230mm |
| Depth of Field DataMatrix (10mil) | 110mm-260mm |
| Depth of Field QR (15mil) | 55mm-410mm |
| Operating System | Android 13 GMS |
| Processor | 2.2GHz, octa-core 64-bit processor (MT8781)，2*A76@2.2GHz,6*A55@2GHz |
| Memory RAM | 4GB |
| Memory Flash | 64GB |
| Battery Type | 3.85V, 5000mAh |
| Camera | Front camera: 5 megapixels; Rear camera: 13 megapixels, auto focus, with LED flashlight |
| Dimensions (mm) | 159(L) × 74(W) × 15.9(H) mm |
| Display | 5.5” (720×1440), multi-point capacitive touch screen with hardened glass; Brightness (max.400 Nits) |
| Expansion Slot | Micro SD Card (max 256GB), 2 PIN contacts support Pistol grip |
| Interfaces | USB Type-C, charging contacts on the bottom, supports headphones |
| Keypad | -, Power |
| Microphone | Dual microphones, supports noise reduction |
| Notifications | Vibrator, speaker (8R,1W 10cm,103dB) and multi-color LEDs |
| Power Supply Input | AC100~240V, 50~60Hz, 18w fast charge |
| Power Supply Output | 9V, 2A |
| Sensors | Light & Proximity sensor, Gravity sensor, Gyroscope, Electronic compass |
| SIM | Nano+Nano or Nano+TF |
| Weight | 277g (including battery) |
| WWAN RADIO | 1900MHz; 3G: WCDMA (B1, B2, B5, B8), CDMA: 1X EVDO (BC0); 4G: TDD-LTE (B34, B38, B39, B40, B41), FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b) |
| WLAN RADIO | ac, support 2.4G and 5G dual frequency |
| WPAN RADIO | Bluetooth 5.2 BLE backward compatibility |
| NFC | B, MIFARE, FeliCa, NFCForumTags, ISO15693 |
| GPS | GPS (AGPS), GLONASS |
| Operating Temperature | -20℃ to 55℃ (-4°F to 131°F) |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) |
| Humidity | 5% to 95% (non-condensing) |
| Electro Static Discharge (ESD) | ±15 kV (Air discharge), ±8 kV (Direct discharge) |
| Drop | 1.5m drops to concrete (for six sides, one drop per side) |
| IP Rating | IP65 |
| Standard | Protective case, USB-C cable, battery, screen protector, hand strap, and multiplug adapter |
| Optional | Battery, AC adapter, cable, hand strap, protective case, protective film, charging cradle, 4-slot battery charging cradle |
Документы
| Имя | Просмотр | Тип |
|---|---|---|
 MT93 Standard.pdf | View | Datasheet |
| MT93 Standard User Guide | View | User Guide |
| Newland Android PDA API Handbook | View | API Handbook |
| Newland Android PDA Symbologies Configuration Handbook | View | Symbologies Configuration Handbook |
| APP User Guide | View | User Guide |
| Newland Android PDA Barcode Scanning SDK Handbook | View | SDK Handbook |
| Acuscan Brochure | View | PDF Brochure |
Доступные версии
| Номер детали | Описание |
|---|---|
| NLS-MT9300-W4-AS | 64GB, BT, WiFi5, 4G, GPS, NFC and Camera. Incl. protective case, USB-C cable, battery, screen protector, hand strap, and multiplug adapter. OS: Android 13 GMS. |
